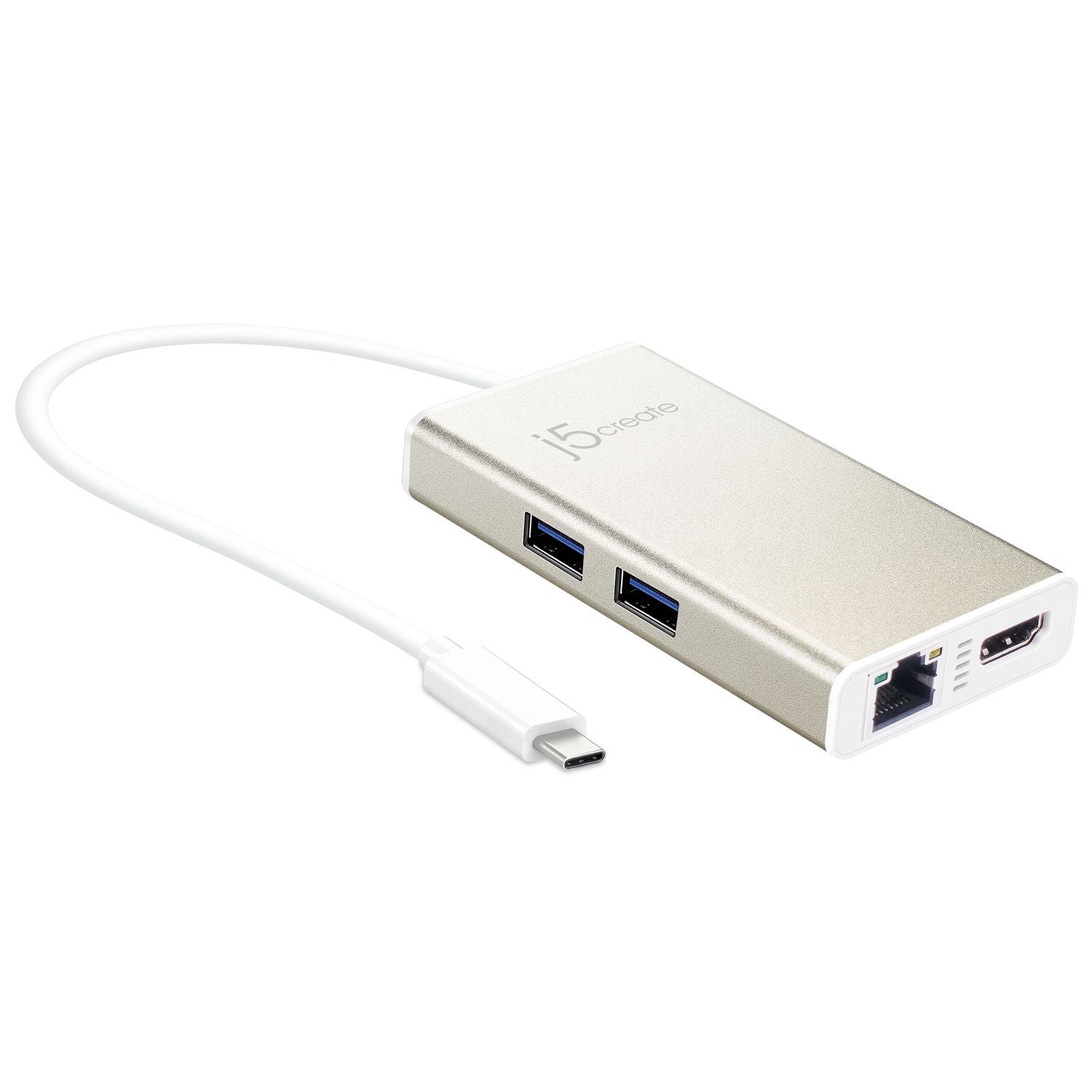

Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 3.0, it supports upstream streaming ensuing your connected laptop powered up while in use.
Features
- • Supports HDMI™ resolutions up to 4K @ 30 Hz
- • Reliable network connectivity via the Gigabit Ethernet port with LED indicators

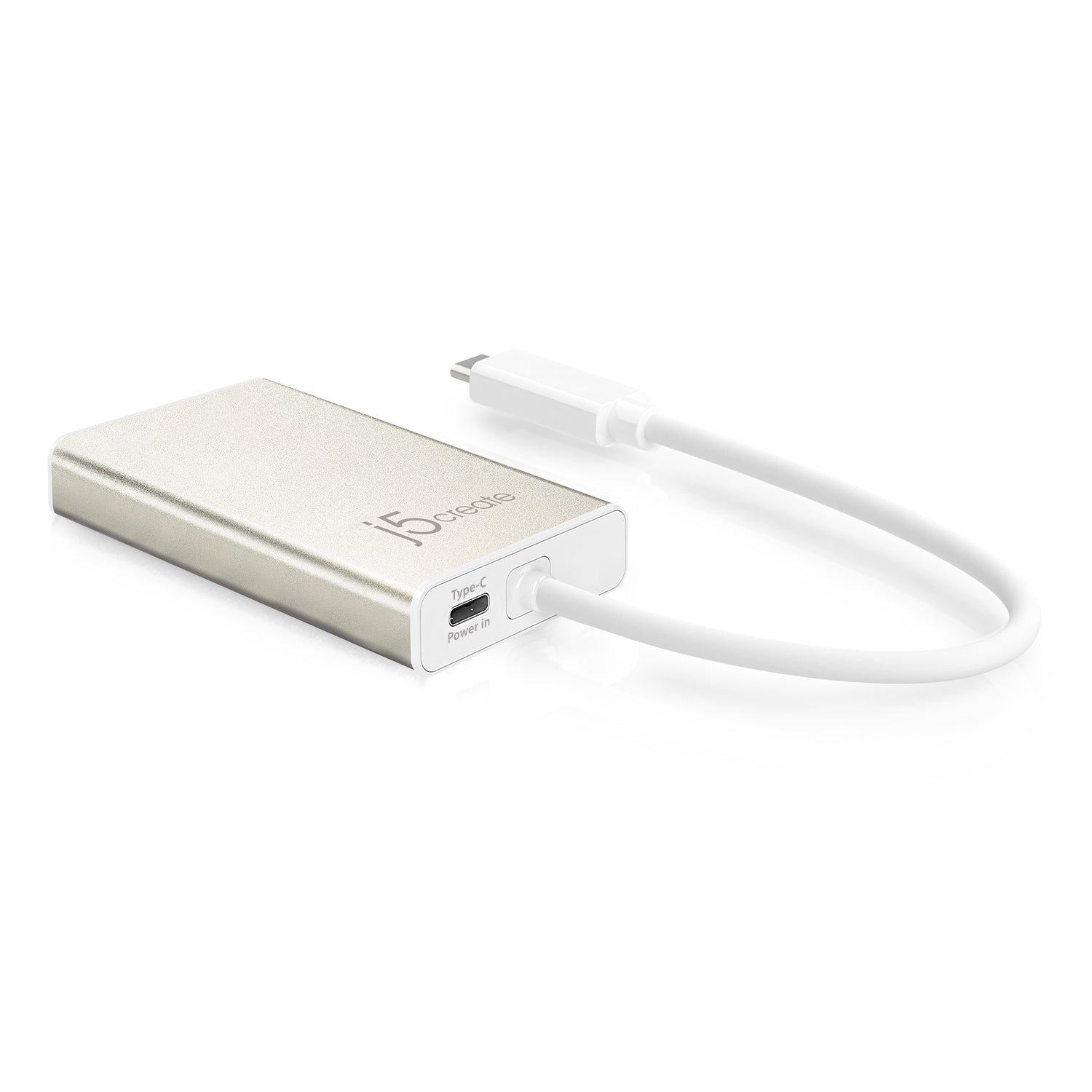

- • Power your laptop with up to 60W pass-through charging using this adapter and a USB-C® power adapter
- • 2 x SuperSpeed USB™ 5 Gbps ports to connect additional peripherals transfer speed
- • Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
- • Compact and lightweight design for maximum portability
- Supports HDMI™ resolutions up to 4K @ 30 Hz
- Reliable network connectivity via the Gigabit Ethernet port with LED indicators
- Power your laptop with up to 60W pass-through charging using this adapter and a USB-C® power adapter
- 2 x SuperSpeed USB™ 5 Gbps ports to connect additional peripherals transfer speed
- Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
- Compact and lightweight design for maximum portability
| Hardware | |
|---|---|
|
audio supported Yes
host connector 1 - USB-C® Male network interface RJ45 (Gigabit Ethernet)
ports
power source Bus-powered or self-powered
video output 1 - HDMI™ Female warranty 2 Year Limited
| |
| Performance | |
|
audio channel 2.1 via HDMIâ„¢
compatible networks 10/100/1000 Mbps
displays supported Yes max data transfer rate 5 Gbps max display refresh rate 60 Hz @ 1920 x 1080 30 Hz @ 3840 x 2160 max display resolution 3840 x 2160 | |
| Mouse Specifications | |
| Power | |
|
input current Up to 3A
input voltage Up to 20V
output current Up to 3A
output voltage Up to 20V
power consumption ≤ 450mA
power delivery Up to 60W via USB-C®
| |
| Physical Specifications | |
|
cable length 3.93 in. (100mm)
color Champagne Metallic
enclosure type Aluminum
operating humidity < 85% non-condensing
operating temperature 32 to 98°F (0 to 37°C)
product depth 3.79 In. (96.5 mm)
product height 0.59 In. (15 mm)
product weight 2.43 oz (69 g)
product width 1.98 In. (50.5 mm)
storage humidity < 85% non-condensing
storage temperature 14 to 140°F (-10 to 65°C)
| |
| Wireless Protocols | |
| Package Contents | |
|
| System Requirements | |
|---|---|
| |
| Special Notes | |
|
